Shelly Mini Plus PM - Consumption and Power Monitoring of Household Appliances 230V 16A WiFi and Bluetooth

Smart Module for Accurate Consumption Monitoring and Measurement of Power/Absorption of Household Appliances and Electronic Devices.

Shelly Plus PM Mini is the world's smallest electric consumption monitoring device managed via Wi-Fi. This module supports up to 16 A of load at 240V AC for precise consumption monitoring.

Designed solely for current monitoring, it ensures precise and real-time measurement, with data storage in the cloud for free analysis and optimization of energy consumption.

You can install Shelly Plus PM Mini behind your appliance and get a detailed overview of its consumption.

Shelly Plus PM Mini does not require any type of HUB presence for control as it is compatible with its official Shelly Smart Control App.

Also compatible with most platforms like Home Assistant, protocols like HTTPS and MQTT, as well as voice assistants like Amazon Alexa and Google Home.

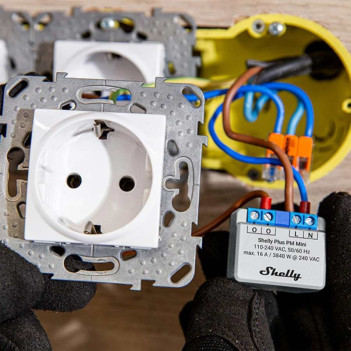

With this device, you can easily monitor the energy consumption of your lights and appliances from anywhere. It seamlessly integrates with the existing smart ecosystem. Despite its reduced size by 35% compared to the Plus models, it easily mounts behind wall sockets, electrical boxes, or directly inside the device to be monitored, maintaining unchanged performance and functionality.

Datasheet:

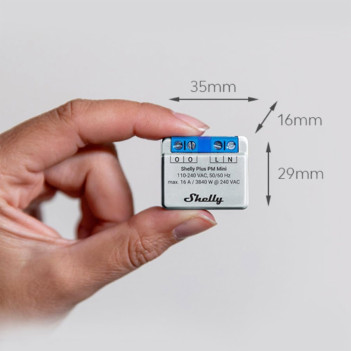

Dimensions (HxWxD): 29x35x16 ±0.5 mm

Weight: 13g

Mounting: Junction box

Conductor cross-section: From 0.5 to 1.5 mm²

Conductor stripping length: From 5 to 6 mm

Ambient temperature: From -20 °C to 40 °C

Humidity: From 30% to 70% relative humidity

Max. altitude: 2000 meters

Input Voltage: 110 - 240 VAC

Amps: Max 16 A

Power consumption: <1.2 W

Maximum measuring voltage: 240 VAC

Maximum measuring current: 16A

Maximum measuring power: 3840 W

Power measurement: Yes

Internal temperature sensor: Yes

Wi-Fi Communication: Yes, 802.11b/g/n

Wi-Fi Range: Up to 30 m/100 feet indoors and 50 m/160 feet outdoors

Bluetooth Communication: Yes, 4.2

Bluetooth Range: Up to 10 m/33 feet indoors and 30 m/100 feet outdoors

Warranty: 2 Years
