Shelly EM - WiFi Energy Meter Module - Including Current Contact Clamp 50A

Shelly EM + 1 AMPEROMETRIC CLAMP up to 50A for home electrical consumption measurement.

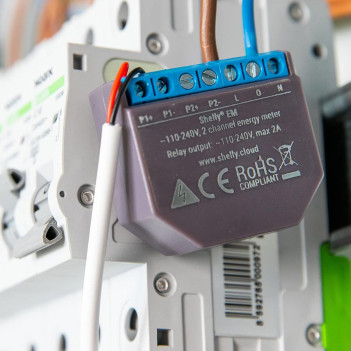

The Shelly EM is a Wi-Fi current and voltage meter equipped with 1 clamp that allows monitoring the consumption of any appliance, electrical circuit, and office equipment (lights, power lines, security systems, heaters, air conditioners, etc.). By connecting the amperometric clamp to the desired phase of the cable, you can obtain consumption information, generating a history on your smartphone through the Shelly app. It has two independent measurement channels up to 120A each.

The Shelly EM is controllable via WiFi with your mobile phone, computer, and any other device that supports HTTP and/or UDP and MQTT protocols. Shelly EM is compatible with all major international voltage standards, therefore 110-230 V ±10% 50/60 Hz in Alternating Current with a maximum current load of 120A.

The Shelly EM has 2 channels and is equipped with overload and maximum temperature protection. It can connect to any WiFi network or can function as an Access Point.

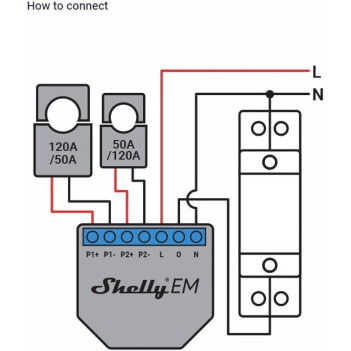

You can connect 2 clamps to the device if you have a counter paired with a photovoltaic system to have an overview of the household consumption and photovoltaic energy production. The peculiarity of the Shelly EM is the ability to detect both the instantaneous voltage and the voltage history during the day/week/month/year.

With Shelly EM, you can also receive information about the consumption of electronic devices, energy meters, or photovoltaic systems.

Datasheet » Click Here

Specifications:

INPUT Voltage: AC 110-230 V, 50/60 Hz

Relay control: Yes, maximum 2 A

Device temperature protection: Yes

Power measurement: Yes

Channels: 2 channels (single-phase)

Operating temperature: from 0 to +40°C

Device power consumption: < 1 W

Smart on/off: Yes

Local and remote control: Yes

Sunrise/sunset function: Yes

Weekly programming: Yes

Wi-Fi protocol: Yes, 802.11b/g/n

Wi-Fi range: Up to 30 m/100 feet indoors and 50 m/160 feet outdoors (depending on local conditions)

Dimensions: 39 x 36 x 17 mm

Warranty: 2 years
