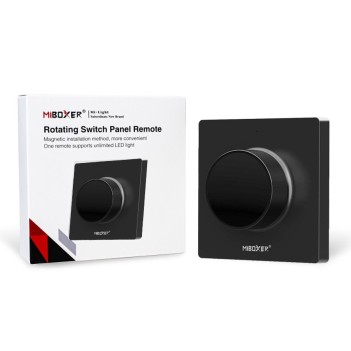

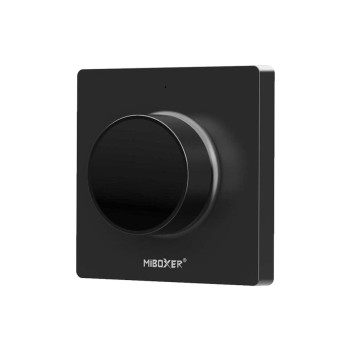

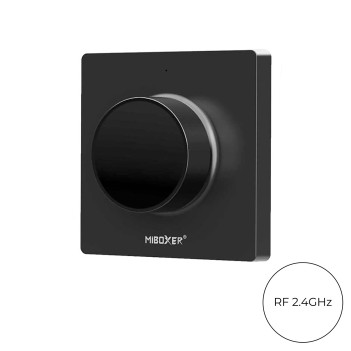

MiBoxer MiLight K1 Wall Controller with RF Dimmer Wheel 2.4GHZ - Black

Mi Light is a company specialising in LED lighting and luminaire management. The Mi-Light K1 remote control for LED bulbs and strips, which is very easy to assemble and configure, will allow you to manage the lighting in your home even at a distance of 30m with a simple thumbwheel.

With this controller you can decide the lighting intensity of your lamps and change the temperature of your light from warm to cold, and vice versa.

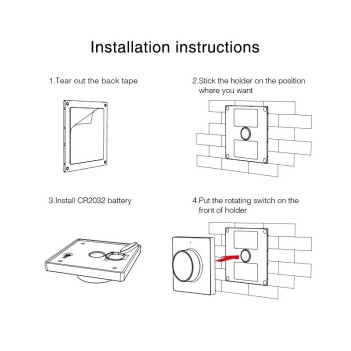

This LED light controller runs on a simple CR2032 button battery, and can be quickly installed with double-sided adhesive tape, screws or a magnet on metal surfaces.

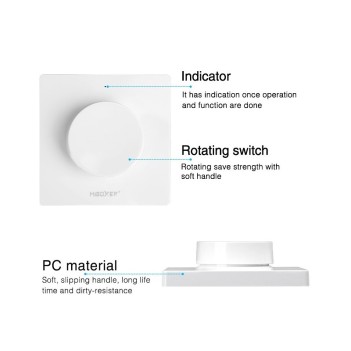

To switch the light on and off, simply press the thumbwheel in the centre. If you want to change the intensity of the light, simply turn the wheel to the right or left. If you want to change the temperature of your light, simply turn the light on and press the wheel for 3 seconds. This will switch the light to Dual White mode and by turning the wheel you will change your light from cold to warm and vice versa.

This device also allows you to set the Soft Light mode (Night Light) by holding down the central wheel for 3 seconds when the device is switched off

How do I connect the controller to LED lamps?

The procedure is really very simple. Switch off the lamp you want to associate and switch it on again after 10 seconds. Then briefly press the 'SET' button (located at the rear of the device) 3 times within 3 seconds. The indicator light will light up and flash slowly 3 times. This will indicate that the connection was successful.

TECHNICAL SPECIFICATIONS:

Model: K1 black colour

Power supply: 3V button battery (CR2032)

Transmission power: 6dBm

Standby consumption: <6uA

RF signal: 2.4GHz

Control distance: 30m

Operating temperature: -10~40C

Compatibility: FUT035S+ / FUT035W+ / FUT036P / FUT035P / FUT035Z+ / WL5 receivers
