KINGLED | TRI-C1ZR Dimmer Triac Zigbee AC 100-240V RF e Dimming Push

Type of device:
Dimmer / Controller
Input:
AC 100-240V
Output:
AC 100-240V
Watts:
Max 288 W
IP rating:
IP20
Dimmable:
Yes
Protocol:
Dimm. PUSH
Protocol:
2.4 GHz RF Management
Protocol:
ZigBee management
Brand:
MiBoxer
Ampere:
1, 36A

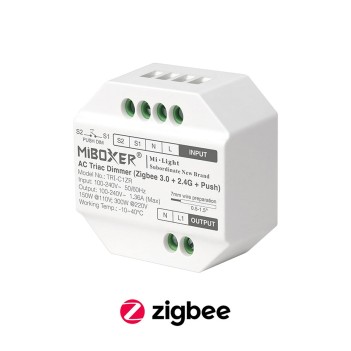

MiBoxer Mi Light TRI-C1ZR Triac Zigbee AC 100-240V 300W Dimmer Module Mi Light Remote Control and Push Button Management

6763

€36.60
,
5/ 5
22% Tax included
In stock - Shipping in 24/48H Delivery in 24/48H (Europe 3-5 days)

Download Datasheet

Max Power: 300 W

Input: 100-240V AC

Output: 100-240V AC

Management: ZigBee 3.0 + RF 2.4GHz + Push

Distance: about 30 meters in RF / about 100 meters in ZigBee

Waterproofness: IP20

Dimmable: SI

Need of: ZigBee 3.0 Gateway

Compatible with: All ZigBee 3.0 devices and controllers

Quantity
-
+
Totale:
22% Tax included


Spedizione gratuita a partire da 59€
Prodotti con Garanzia
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Spedizione entro 24/48h
Oltre 40000 recensioni

Chiamaci +39 0392271928
Richiedi Assistenza
Contattaci tramite Whatsapp

Lun - Gio 9h - 18:30h | Ven 9h - 18h

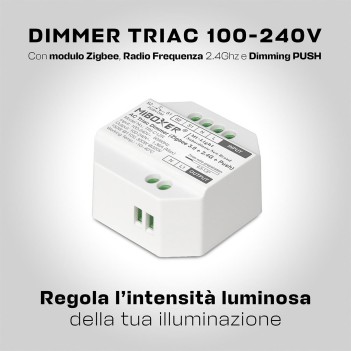

This device from the well-known Mi Light brand MiBoxer is a triac AC 100-240V dimmer module that will allow you to manage your lighting via push button, RF remote control and also via smartphone and voice assistant when paired with a gateway.

This triac zigbee dimmer supports a maximum power of 300W and is compatible with the main Zigbee gateways on the market such as Philips Hue, Ikea Tradfri, Amazon Echo plus (2nd generation), Echo (4th generation), Echo studio, Echo Show (2nd generation).

This triac dimmer will connect directly to your Amazon Echo plus (2nd generation) without the use of any app or gateway.



If you want to manage your lighting via remote control, you can combine the triac dimmer with any Rf 2.4G remote control from the single colour line.

Here are the Miboxer Rf single-colour remotes: click here.



This zigbee dimmer is designed for dimming AC 100-240V devices and to be controlled by Mi Light MiBoxer remote controls in RF 2.4Ghz Wireless or by local push button control.

Maximum power supported 300W at 220V. Also works on 110V voltage with maximum power of 150W.

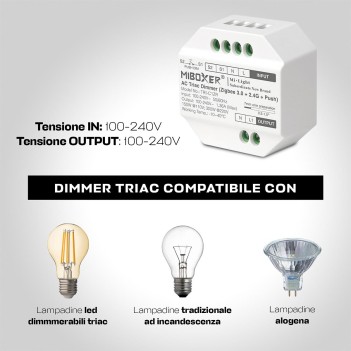

Compatible with halogen, traditional filament or dimmable LED bulbs.

Small dimensions allow direct installation in junction boxes.

This TRI-C1 module features overload and overtemperature protection.

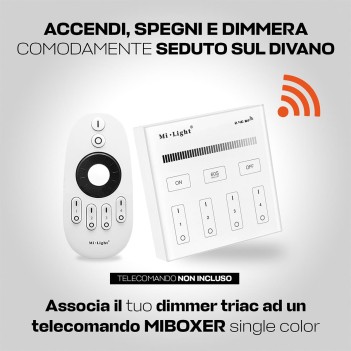

Managed by MiBoxer Mi Light Remote Control or Push Button

Compatible Remote Controls: FUT007 / B1 / T1 / B2 / T2 / K1 / FUT087

Using the ZB-Box1 Gateway Module you can also operate this Triac Module from Smartphone or Voice Devices. (Gateway not included)



Functions from Remote Control (not included): Different remote controls also offer different functions.

-Turn on and off.

-Adjust Brightness.

-Hold down '0' to set the minimum brightness.

-Only with some remote controls you can delay the switch-off.

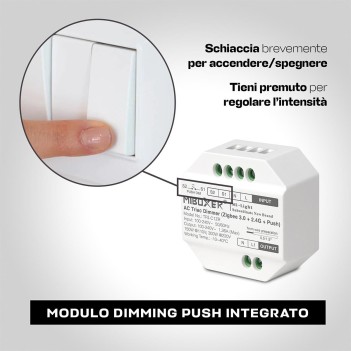

Push Button Functions (not included):

-Click Quick Turn On and Off.

-Keep pressed to adjust brightness.

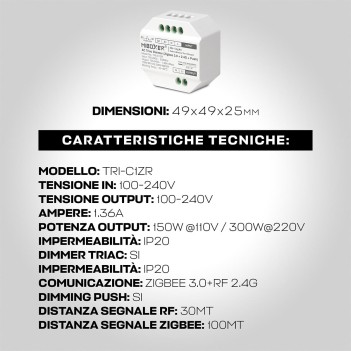

Product details:

Model: TRI-C1ZR

Input: AC 100-240V 50/60Hz

Output: AC 100-240V 50/60Hz

Max Power: 1.36A (150W at 110V / 300W at 220V)

Dimming: Triac / Trailing Edge / Phase Cut

Dimming Methods: Mi Light MiBoxer RF 2.4GHz Wireless Remote Control / Push Button

Maximum control distance by remote control: 30 metres.

Maximum control distance by Zigbee signal: 100 metres.

Working temperature: -10 to 40°

6763
257 Items

Data sheet

Type of device
Dimmer / Controller
Input
AC 100-240V
Output
AC 100-240V
Watts
Max 288 W
IP rating
IP20
Dimmable
Yes
Protocol
2.4 GHz RF Management
Dimm. PUSH
ZigBee management
Brand
MiBoxer
Ampere
1, 36A

Specific References

EAN13
6970602183507
