MiBoxer Mi Light TRI-C1 Triac Dimmer Module AC 100-240V 300W Management by Mi Light Remote Controls and Push Button

Mi Light MiBoxer Triac Dimmer Module AC 100-240V Push Button Management and RF Wireless Dimming Power 300W

MiBoxer Mi Light Triac Dimmer Module AC 100-240V 300W Management by Mi Light Remote Controls and Push Button

Triac Dimmer Module for Dimming AC 100-240V Devices Can be controlled by Mi Light MiBoxer remote controls in RF 2.4Ghz Wireless or by Local Push Button Control.

Maximum supported power 300W at 220V. It also works in 110V voltage with a maximum power of 150W.

Compatible with Halogen, Traditional Filament or Dimmable Led Bulbs.

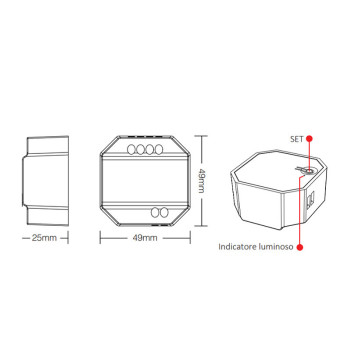

The small size allows direct installation in junction boxes.

This TRI-C1 module is equipped with Over Load and Over Temperature protection.

Manage from Mi Light MiBoxer Remote Control or Push Button

Compatible remotes: FUT007 / B1 / T1 / B2 / T2 / K1 / FUT087

Using the WL-iBox1 Gateway Module you can also control this Triac Module from Smartphone or Voice Devices. (Wl-Ibox1 module not included)

Remote Control Functions (not included): Different remote controls also offer different functionality.

- Turn on and off.

-Adjust the Brightness.

-Keeping pressed the "0" you can set the minimum brightness.

-Only with some remote controls you can delay the shutdown.

Push Button Functions (not included):

-Fast click Turn On and Off.

- Press and hold to adjust the brightness.

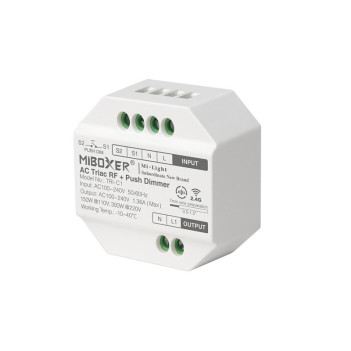

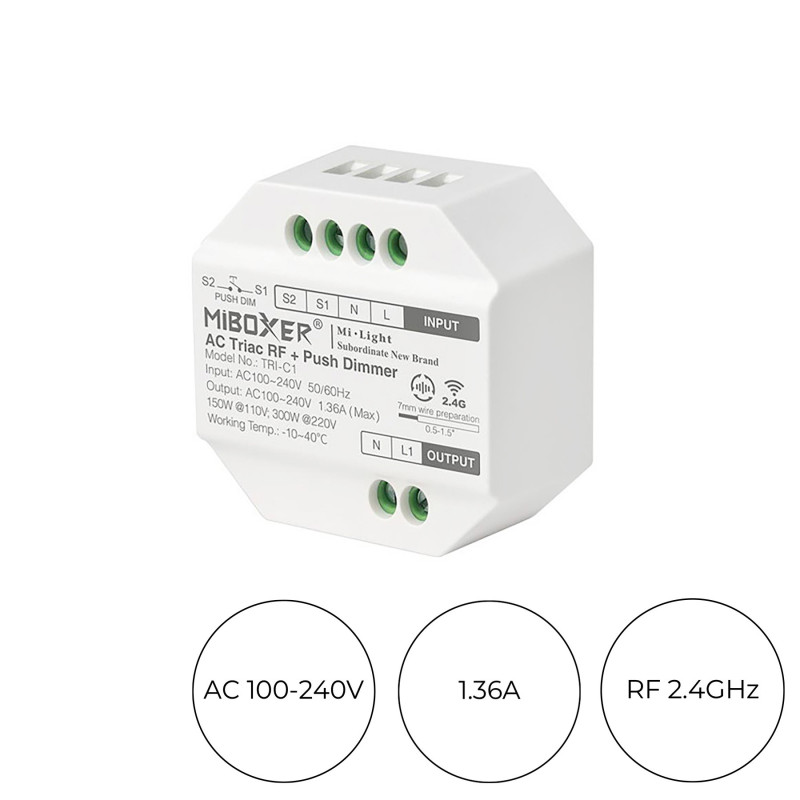

Product details:

Model: TRI-C1

Input: AC 100-240V 50 / 60Hz

Output: AC 100-240V 50 / 60Hz

Max Power: 1.36A (150W at 110V / 300W at 220V)

Dimming: Triac / Trailing Edge / Phase Cut

Dimming Methods: Mi Light MiBoxer RF 2.4GHz Wireless Remote Control / Push Button

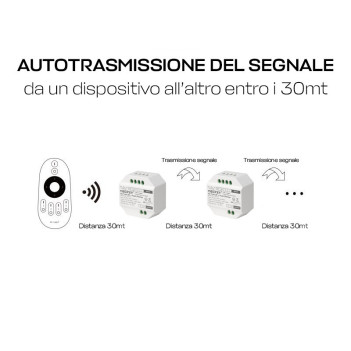

Maximum control distance from Teleocmando: 30 meters.

Working temperature: -10 to 40 ° C
