MiBoxer Mi Light FUT037Z+ ZigBee 3.0 Receiver for 12/24V RGB/RGB+W/RGB+CCT Led Strip

MiBoxer FUT037Z+ is a mini Dimmer Receiver with ZigBee 3.0 and RF 2.4Ghz communication protocol to control RGB, RGB+W and RGB+CCT LED strips

With this receiver you can control your LED strip via Zigbee technology in addition to remote control.

It is also compatible with one or more Led Strips connected in parallel. MINI version, with reduced dimensions, but with the same power (Max. 12A)!

The 2.40Ghz RF signal reaches up to 30mt, while the Zigbee signal reaches up to 100mt.

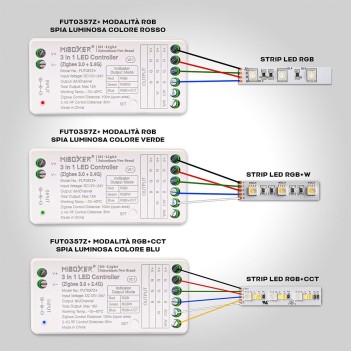

On the device you will find the SET button that allows you to set the receiver to the required mode (RGB, RGb+W or RGB+CCT). If you are connecting it to an RGB led strip, press the set button until the indicator light turns red. Instead, to set it to RGB+W mode the indicator light should be green. If you have an RGB+CCT LED strip instead the indicator light should be Blue.

- Red: RGB

- Green: RGB+W

- Blue: RGB+CCT

The SET button will also be used to put the receiver into pairing mode. Press and hold it briefly to enter RF pairing mode, otherwise hold it for about 3 seconds to enter Zigbee pairing mode.

Through the use of a Gateway, it will be possible to manage your LED strip from a smartphone and to take advantage of many functions.

Functions

Power on and off

Brightness management from 10%-100%

Coloured light management

RGB+CCT temperature management

Compatible with all MIBOXER remote controls

DATASHEET:

Model: FUT037Z+

Voltage: DC 12V / 24V

Wireless protocol: Zigbee 802.15.4

Maximum current per channel: 12A

Maximum total current: 12A

Maximum Zigbee control distance: 100 metres

Maximum radio frequency control distance: 30 metres

Dimensions: 74.5 x 36 x 17 mm

Creating an LED home automation system is simple and innovative with Mi Light MiBoxer products.

King Led SRL IS THE OFFICIAL ITALY RESELLER OF MI-LIGHT®.

MiBoxer® is the new sub-brand of Mi Light

How to synchronise the MiBoxer FUT037Z+ to a MiBoxer remote control

- Install the receiver correctly to a power supply and LED strip.

- Set the receiver to the mode compatible with your led strip

- Set the receiver to pairing mode (the indicator light on the device starts flashing)

- Check that the remote control is compatible with the FUT037Z Receiver

- Switch off the Receiver (by removing power from the power supply)

- Switch on the Receiver

- When the LED strip connected to the Receiver lights up, within 3 seconds, press repeatedly (at least 1 time per second) on one of the "I" symbols located at the bottom of the remote control at the zone you wish to associate.

-If synchronisation is successful, the LED flashes.

Here's How to Sync the Miboxer LED Strip Receiver with the Remote Control:

In the video, we demonstrate the process of pairing the WL5 receiver with a remote control. Regardless of the Miboxer RF receiver or remote control used, the procedure will be the same (including with Miboxer bulbs and spotlights). This same procedure is used to uncouple the receiver from one zone of the remote control. So, if you want to associate the receiver with another zone, simply follow this procedure to uncouple it and repeat it a second time to pair it with another zone.
