MiBoxer Mi Light FUT035S+ 20A RF Receiver for Single Colour Led Strip and CCT Dual White 12/24/48V

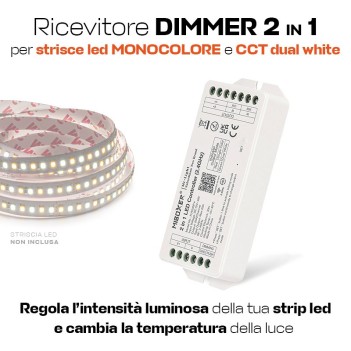

MiBoxer FUT035P+ is a receiver/dimmer for CCT (dual white/dynamic white) and single-colour LED strips with a 2.4Ghz RF module for remote control operation. The feature of this receiver is the maximum supportable power of up to 20A.

Replaces Receiver: FUT35P; FUT036P

With this receiver you can control your LED strip by remote control and by local control like a wall switch (push dimming).

It is also compatible with one or more Led Strips connected in parallel.

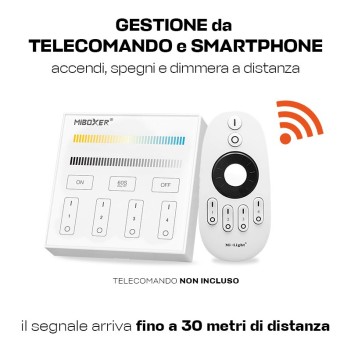

The 2.40Ghz RF signal reaches up to 30m.

This receiver is also equipped with PUSH dimming. Thanks to this module, after connecting it to a push-button (not to be confused with an ON/OFF switch), you will be able to control your LED strip also from a classic wall button. Press briefly to switch on and off, hold down instead to adjust the light intensity.

On the device you will find the SET button that allows you to set the receiver to the required mode (single colour or dual white). If you are connecting it to a single-colour LED strip, press the set button until the indicator light turns red. Instead, to set it to DUAL WHITE mode the indicator light should be green.

Through the use of a Gateway it will be possible to manage your LED strip from your smartphone.

Functions

Switching on and off

Brightness management from 10%-100%

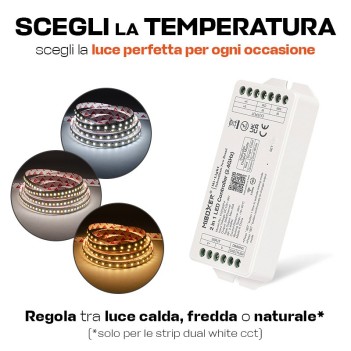

White light temperature management for CCT led strips

Compatible with all MIBOXER remote controls

DATASHEET:

Model: FUT035P+

Voltage: DC 12V / 24V /48V

Wireless protocol: RF 2.4Ghz

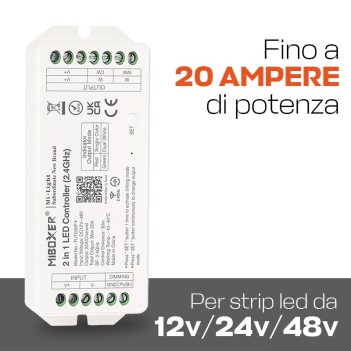

Maximum current per channel: 20A (480W in 24V; 240W in 12V; 960W)

Maximum total current: 20A (480W in 24V; 240W in 12V; 960W)

Maximum radio frequency control distance: 30 metres

Dimensions: 119.5x47x23mm

Creating an LED home automation system is simple and innovative with Mi Light MiBoxer products.

King Led SRL IS THE OFFICIAL ITALY RESELLER OF MI-LIGHT®.

MiBoxer® is the new sub-brand of Mi Light

CONNECTIONS

Input for a power supply with Jack 5.5 connector

Input V-: Negative transformer wire (usually black)

Input V+: Positive transformer wire (usually red)

Output Led V+: Positive wire from single-colour (red) or CCT LED strip (usually Brown)

Output W: Black wire from single-colour LED strip

Output CW: White wire

Output WW: Yellow wire

The button is connected to the "GND" and "PUSH" terminals with dry contact

How to synchronise the MiBoxer FUT035P+ to a MiBoxer remote control

- Install the receiver correctly to a power supply and LED strip.

- Set the receiver to the mode compatible with your led strip

- Set the receiver to pairing mode (the indicator light on the device starts flashing)

- Check that the remote control is compatible with the FUT035P+ Receiver

- Switch off the Receiver (by removing power from the power supply)

- Switch on the Receiver

- When the LED strip connected to the Receiver lights up, within 3 seconds, press repeatedly (at least 1 time per second) on one of the "I" symbols located at the bottom of the remote control at the zone you wish to associate.

-If synchronisation is successful, the LED flashes.

Here's How to Sync the Miboxer LED Strip Receiver with the Remote Control:

In the video, we demonstrate the process of pairing the WL5 receiver with a remote control. Regardless of the Miboxer RF receiver or remote control used, the procedure will be the same (including with Miboxer bulbs and spotlights). This same procedure is used to uncouple the receiver from one zone of the remote control. So, if you want to associate the receiver with another zone, simply follow this procedure to uncouple it and repeat it a second time to pair it with another zone.
