MiBoxer Mi Light E3-RF is an RF Receiver for RGB/RGB+W/RGB+CCT LED Strips at 12/24V with quick connectors.

The MiBoxer E3-WR is a mini Dimmer Receiver for multicolored LED strips with a 2.4GHz RF module. This dimmer is compatible with RGB, RGB+W, and RGB+CCT LED strips.

It replaces the following Receivers: FUT037W; FUT038W; FUT039W.

With this receiver, you can manage your LED strip using a remote control, which is available for separate purchase.

It's also compatible with one or more parallel-connected LED Strips. It's a MINI version with reduced dimensions but the same power (Max 12A)!

The 2.4GHz RF signal reaches up to 30 meters.

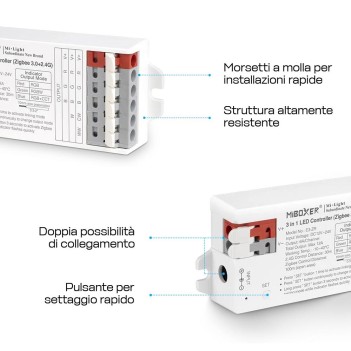

On the device, you'll find the SET button that allows you to set the receiver to the required mode based on the connected LED strip. If you're connecting it to an RGB LED strip, press the set button until the indicator light turns red. To set it to RGB+W mode, the indicator light should be green. For an RGB+CCT LED strip, the indicator should be blue.

Functions (vary depending on the connected LED strip model):

Power On/Off

Brightness control from 10% to 100%

Color control

White Light Temperature control for RGB+CCT LED strips

This receiver can also be managed in a smart way through a smartphone and voice assistant, but it needs to be synchronized with the MiBoxer WL-IBOX1 gateway. Here are the smartphone functions:

Goodnight/Good morning mode

Biorhythm mode

Music rhythm light mode

Timer/programming mode

Soft On/Off

Customizable scenes

Compatible with all MIBOXER remotes

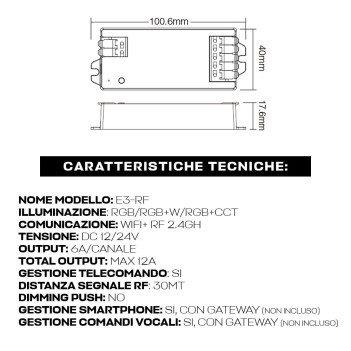

DATASHEET:

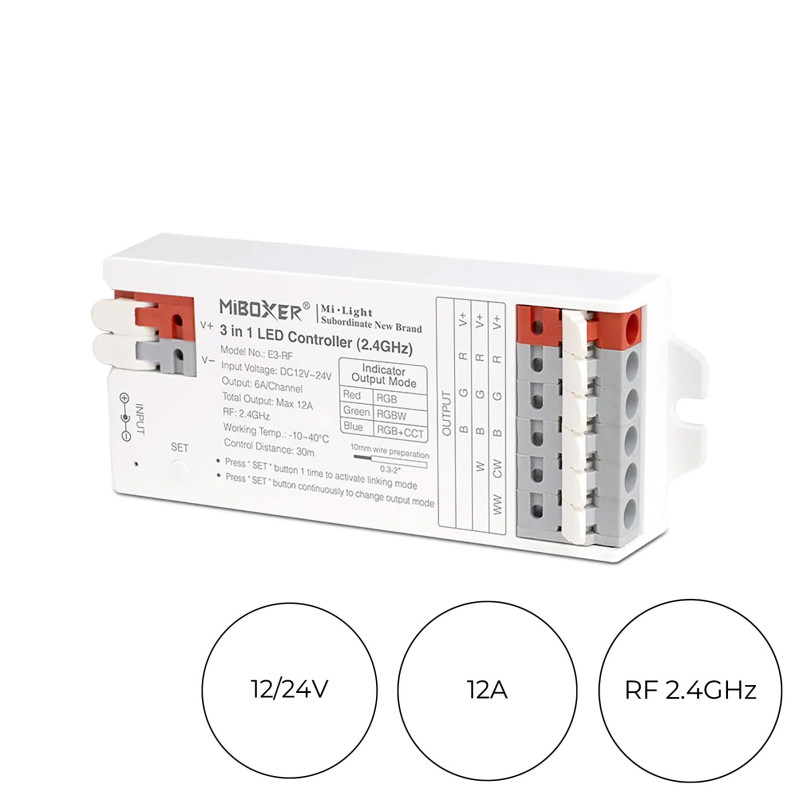

Model: E3-RF

Voltage: DC 12V / 24V

Wireless Protocol: RF 2.4GHz

Maximum Current per Channel: 12A

Maximum Total Current: 12A

Maximum Radio Frequency Control Distance: 30 meters

Dimensions: 100.6x40x17.6mm

Creating a LED Home Automation system is simple and innovative with Mi Light MiBoxer products.

King Led SRL is the OFFICIAL ITALY RETAILER for MI-LIGHT®.

MiBoxer® is the new sub-brand of Mi Light.

CONNECTIONS:

How to sync the MiBoxer E3-RF with a MiBoxer remote:

Properly install the receiver to a power supply and LED strip.

Set the receiver to the mode compatible with your LED strip.

Set the receiver to pairing mode (the device's indicator starts flashing).

Verify that the remote is compatible with the E3-RF Receiver.

Turn off the Receiver (disconnect power from the power supply).

Turn on the Receiver.

When the LED strip connected to the Receiver lights up, within 3 seconds, press repeatedly (at least 1 press per second) on one of the "I" symbols at the bottom of the remote corresponding to the zone you want to associate.

If the synchronization is successful, the LED will flash.

Here's How to Sync the Miboxer LED Strip Receiver with the Remote Control:

In the video, we demonstrate the process of pairing the WL5 receiver with a remote control. Regardless of the Miboxer RF receiver or remote control used, the procedure will be the same (including with Miboxer bulbs and spotlights). This same procedure is used to uncouple the receiver from one zone of the remote control. So, if you want to associate the receiver with another zone, simply follow this procedure to uncouple it and repeat it a second time to pair it with another zone.
