MiBoxer Mi Light E2-WR Wifi+RF Receiver for Single Color Led Strip and Dual White CCT 12/24V with quick clamps

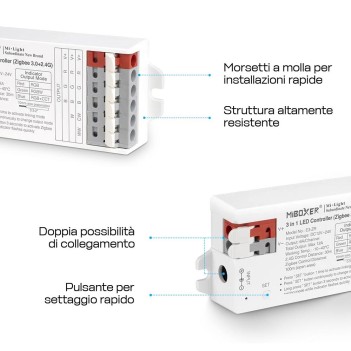

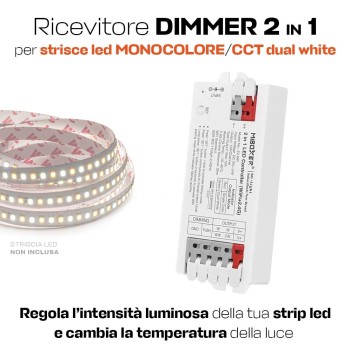

MiBoxer E2-RF is a Dimmer Receiver for both CCT (Dual White/Dynamic White) and single-colour LED strips with a 2.4Ghz WIFI and RF module for management by remote control, smartphone and voice assistant. This receiver, unlike the FUT035W+ model (equipped with screw terminals), has spring-loaded terminals for quick installation without the use of a screwdriver.

With this receiver you can control your LED strip not only from the remote control or wall button, but also from your smartphone and voice assistant.

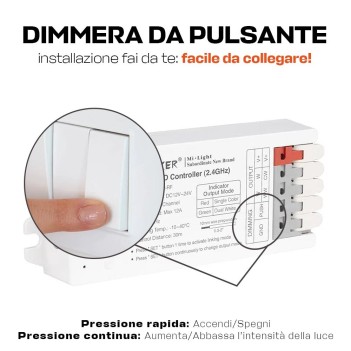

This receiver is equipped with integrated PUSH dimming. With this module, after connecting it to a push button, you can also control your LED strip from a classic wall button. Press briefly to switch on and off, hold instead to adjust the light intensity.

It is also compatible with one or more LED strips connected in parallel. MINI version, with reduced dimensions, but with the same power (Max. 12A)!

The 2.40Ghz RF signal reaches up to 30m.

On the device you will find the SET button that allows you to set the receiver to the required mode (single colour or dual white). If you are connecting it to a single-colour LED strip, press the set button until the indicator light turns red. Instead, to set it to DUAL WHITE mode, the indicator light should be green.

This receiver can be operated by smartphone and voice assistant directly without the use of additional accessories

Functions:

Power on and off

Brightness Management from 10%-100%

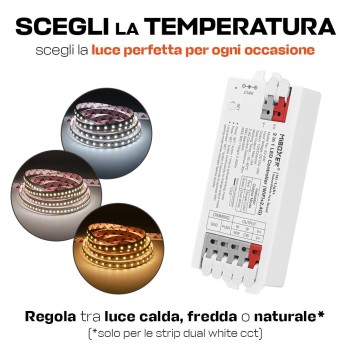

White light temperature management for CCT LED strips

Music rhythm lights

Customisation of scenes

Biorhythm, wake-up and goodnight modes

Compatible with all MIBOXER remote controls

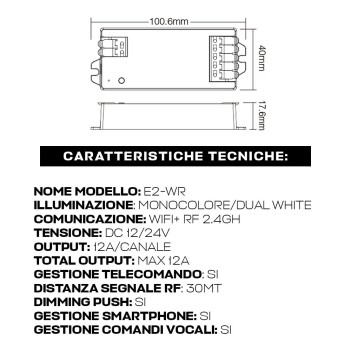

DATASHEET:

Model: E2-WR

Voltage: DC 12V / 24V

Wireless protocol: Wifi + RF 2.4Ghz

Maximum current per channel: 12A

Maximum total current: 12A

Maximum radio frequency control distance: 30 metres

Dimensions: 100.6x40x17.6mm

Creating an LED home automation system is simple and innovative with Mi Light MiBoxer products.

King Led SRL IS THE OFFICIAL ITALY RESELLER OF MI-LIGHT®

MiBoxer® is the new sub-brand of Mi Light

CONNECTIONS

Input for a power supply with Jack 5.5 connector

Input V-: Negative transformer wire (usually black)

Input V+: Positive transformer wire (usually red)

Output Led V+: Positive wire from single-colour (red) or CCT LED strip (usually Brown)

Output W: Black wire from single-colour LED strip

Output CW: White wire

Output WW: Yellow wire

How to synchronise the MiBoxer E2-WR to a MiBoxer remote control

- Install the receiver correctly to a power supply and LED strip.

- Set the receiver to the mode compatible with your led strip

- Set the receiver to pairing mode (the indicator light on the device starts flashing)

- Check that the remote control is compatible with the E2-WR Receiver

- Switch off the Receiver (by removing power from the power supply)

- Switch on the Receiver

- When the LED strip connected to the Receiver lights up, within 3 seconds, press repeatedly (at least 1 time per second) on one of the "I" symbols located at the bottom of the remote control at the zone you wish to associate.

-If synchronisation is successful, the LED flashes.

Here's How to Sync the Miboxer LED Strip Receiver with the Remote Control:

In the video, we demonstrate the process of pairing the WL5 receiver with a remote control. Regardless of the Miboxer RF receiver or remote control used, the procedure will be the same (including with Miboxer bulbs and spotlights). This same procedure is used to uncouple the receiver from one zone of the remote control. So, if you want to associate the receiver with another zone, simply follow this procedure to uncouple it and repeat it a second time to pair it with another zone.
