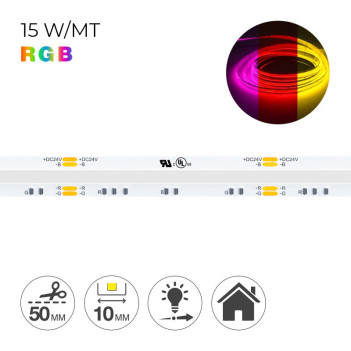

Strip Led 5m COB RGB 75W 24V IP20 PCB 10mm Led Continuous

Multicolor RGB COB 24V Led Strip, also for professional use, 75W with continuous Led Chip without dot effect, for indoor use with IP20 waterproofing

DESCRIPTION

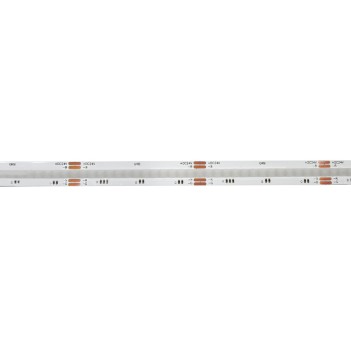

RGB COB Led Strip composed of 4200 mini leds combined forming a Single multicolor COB Led no dot effect

Absolute zero spotlight effect.

Power Supply Voltage DC 24V (Power Supply not included)

Led Strip Dimmable and Cut to every 50mm

Rated Power 75W per Coil / Power Consumption 15W /meter

Multicolor RGb Light

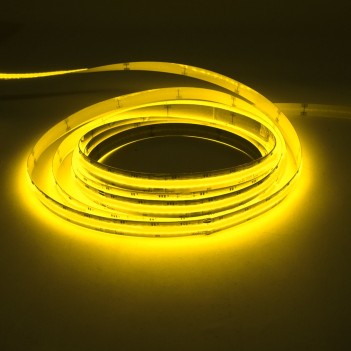

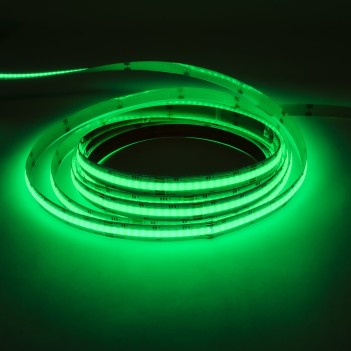

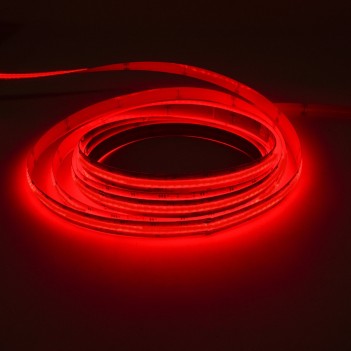

5-meter COB Led Strip, mounted on double-sided adhesive tape from Tesa.

Single Led that can be cut to every 50 mm.

No more spotlight effect, this led strip permanently eliminates any spotlight effect. The light results homogeneous, compact and bright.

Multiple Led strips must be connected in parallel.

Installation requires the 'use of aluminum profiles for dissipation.

TECHNICAL DATA SHEET.

PCB width 10mm

PCB+SMD height 1.6mm

Coil length 5mt

Power supply DC 24V

Number of LEDs: 4200 (840/mt)

Nominal Power 75W

Effective Power 15W /mt

Efficiency: 105Lm/W

Effective Lumens: Colored lights have no lumens

Kelvin: Multicolor

COB Led Type

Cuttable to Each 50mm

Waterproof IP20

Dimmable: YES

Certifications CE / RoSH

Warranty 3 Years

 ------------------------------------------

? Mounting Tips

? HOW TO INSTALL A 24V LED STRIP?

To ensure maximum performance in terms of light output and durability, installation on a special aluminum profile, designed for proper heat dissipation, is mandatory.

Aluminum profiles not only dissipate heat, but also protect the LED strips from dust, insects, and partially from moisture.

Multiple LED strips should be connected in parallel.

? RGB LED STRIP CONNECTION DIAGRAM:

Connecting a 24V RGB led strip with power supply and dimmer/controller:

How to connect a led strip to the power supply

? Tips on choosing a power supply unit

? HOW TO CHOOSE THE POWER SUPPLY FOR YOUR LED STRIP?

LED strips should be powered with a constant voltage power supply, usually with a DC symbol. For 24V LED strips, a DC 24V power supply is required.

To calculate the necessary wattage of the power supply to buy for your led strip, just do a simple mathematical multiplication:

" No. meters of led strip x Watts per meter absorbed by the strip model = Necessary power of the power supply "

Warning: Always buy a power supply slightly more powerful to the result obtained, otherwise your power supply would always work at full load and you would risk burning it out.

"Ex: You have 3 meters of 20W per meter Led strip and you want to buy a power supply, the operation to do will be this: 20 W x 3mt = 60W total power consumption for 3 meters of Led strip. You will then need a power supply of at least 100W "

Please note that 24V led strips, powered at one end can reach the maximum length of 5mt. To reach longer lengths, it is mandatory to power the strip at both ends or in 5mt sections.

Always use a power supply with power higher than the power of the led strip.

? Guide how to dim the Led Strip

? HOW TO HAVE A DIMMABLE LED STRIP?

To adjust the light intensity of a led strip, you need to buy and install a multicolor RGB led strip controller.

If you purchase the wifi receiver for multicolor RGB led strips, you can dim your led strips through your smartphone or with voice commands via the leading voice assistants on the market.
