Led Strip COB RGB 75W 24V IP67 PCB 10mm Chip Led Continued

Waterproof IP67 COB 24V Multicolor RGB LED Strip, also for professional use, 75W with Continuous Chip LED without dotted effect, for outdoor use

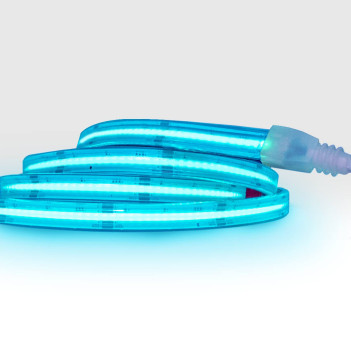

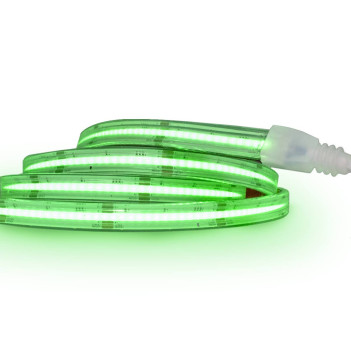

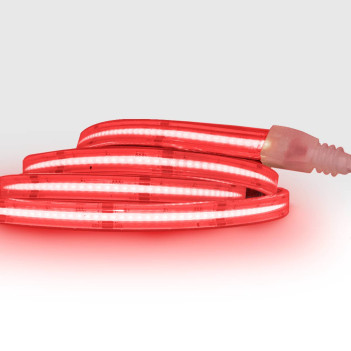

Waterproof RGB COB LED strip composed of 4200 mini LEDs that form a Single Multicolor COB LED with no dotted effect
Absolutely no point light effect.
Power Supply Voltage DC 24V (Power supply not included)

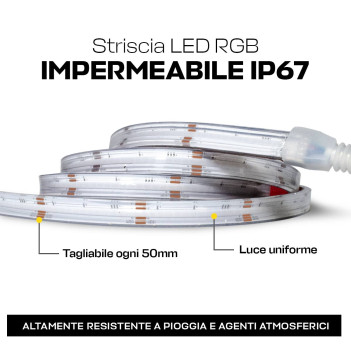

Dimmable and Cuttable LED Strip at every 50 mm
Nominal Power 75W per Coil / Consumption Power 15W/m
Multicolor RGB Light

5-meter COB LED strip, mounted on professional 3M adhesive
Single LED cuttable every 50 mm.

No more point light effect, this LED strip eliminates any point light effect definitively. The light is homogeneous, compact, and bright.

Connecting multiple LED strips must be done in parallel. For installation, the use of aluminum profiles for heat dissipation is necessary.

⚠ WARNING: Test the correct operation of the coil before proceeding with any cuts and installations. It is necessary to disconnect the power supply before proceeding with the installation with the 220V electrical network. In case of cutting the LED strip, make sure to waterproof the cutting area.

If you need a receiver for RGB LED strips » Click here

If you need a waterproof 24V power supply » Click here

TECHNICAL SPECIFICATIONS:

PCB Width: 12 mm (initial connector 14.5mm)

PCB+SMD Height 5.5 mm (initial connector 7.5mm)

Coil Length: 5 m

Power Supply: DC 24V

Nominal Power: 75W

Effective Consumption: 15 W/m

Nominal Lumen: -----

Effective Lumen: -----

Kelvin: RGB

Color Rendering Index (CRI): ----

LED Type: COB

Cuttable at Every: 50 mm

Waterproof: IP67

Dimmable: YES

Certifications: CE / RoSH / UL

Warranty: 3 Years

*Important Note: The "silicone" coating, which enhances the IP65 or IP67 waterproof rating, lightens the light making it clearer, so the actual perceived Kelvin light can be higher by 200K-1500K.

——————————————————————————————————————————

HOW TO INSTALL A 24V LED STRIP?

To ensure the maximum performance in terms of brightness and durability, installation on a specific aluminum profile, designed for proper heat dissipation, is mandatory.

Aluminum profiles not only dissipate heat but also protect LED strips from dust, insects, and partially from moisture.

The connection of multiple LED strips must be done in parallel.

RGB LED STRIP CONNECTION DIAGRAM:

Connection of a 24V RGB LED strip with power supply and dimmer/controller:

HOW TO CHOOSE THE POWER SUPPLY FOR YOUR LED STRIP?

LED strips must be powered by a constant voltage power supply, usually with a DC symbol. For 24V LED strips, a DC 24V power supply is required.

To calculate the necessary wattage of the power supply to buy for your LED strip, simply do a simple mathematical multiplication:

" Number of meters of LED strip  x  Watts per meter absorbed by the LED strip model = Required power of the power supply "

Attention: Always buy a power supply slightly more powerful than the result obtained, otherwise your power supply would always work at full load and you risk burning it.

"Example: You have 3 meters of LED strip with 20W per meter, and you want to buy a power supply. The operation to be done will be this: 20W x 3m = 60W total absorption for 3 meters of LED strip. You will need a power supply of at least 100W "

Note that 24V LED strips, powered at one end, can reach a maximum length of 5m. To achieve longer lengths, it is mandatory to power the strip at both ends or in sections of 5m.

Always use a power supply with a higher power than the power of the LED strip.

HOW TO HAVE A DIMMABLE LED STRIP?

To adjust the brightness of an LED strip, it is necessary to purchase and install a controller for RGB multicolor LED strips.

If you buy the WiFi receiver for RGB multicolor LED strips, you can dim your LED strips via your smartphone or with voice commands through the main voice assistants on the market.
