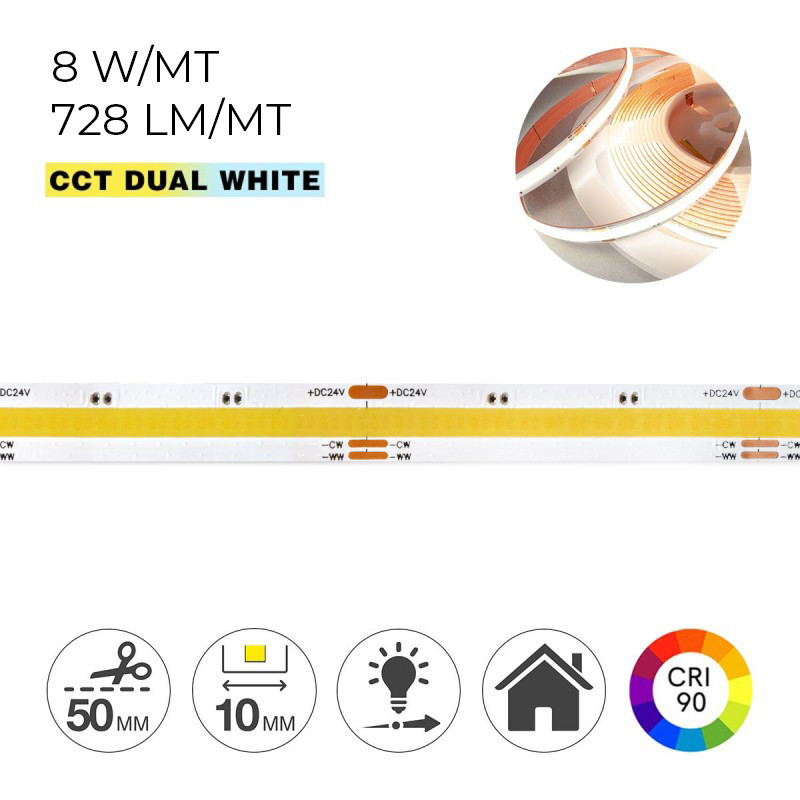

Led Strip COB CCT CRI90 80W 7200lm 24V IP20 PCB 10mm Chip Led Continued

Coil of 5 meters of Strip led 24V continuous chip led without dot effect. The entire coil has a power consumption of 80W, with a consumption per meter of only 16W. Strip led ideal for those who like to have the ability to adjust the temperature of their light according to their needs/preferences.

Led Strip composed of 3200 mini leds combined that make up a single continuous COB Led.

Absolute zero spotlight effect.

High Color Rendering CRI 90+

Power Supply Voltage DC 24V (Power Supply not included)

Led Strip Dimmable and Cut to Every 50mm

Nominal Power 80W per Coil / Power Consumption 16W /meter

Lumen Nominal 7200 lumens per Coil / Effective Lumens 1440lm /mt

5-meter COB Led Strip equipped with double-sided adhesive on the back and connection cables already soldered at the beginning and end of the coil.

Never spotlight effect again, this led strip permanently eliminates any spotlight effect. The light results homogeneous, compact and bright.

Multiple Led strips must be connected in parallel.  Installation requires the use of aluminum profiles for dissipation.

TECHNICAL DATA SHEET.

Part number 6737

PCB width 10mm

PCB+SMD height 1.6mm

Coil length 5mt

Power Supply DC 24V

Nominal Power 80W

Effective Power 16W/mt

Nominal Lumen 7200 Lumen

Effective Lumens 1440 lm /mt

Kelvin: adjustable between 2700K-6500K

Color Rendering (CRI) 90+

Led Type COB

Light Angle : 160°

Cuttable to Every 50mm

Waterproof IP20

Dimmable : YES

Certifications CE / RoSH

Warranty 2 Years

CORRECT INSTALLATION

To ensure maximum performance in terms of light output and lifetime, installation on a special aluminum profile, designed for proper heat dissipation, is mandatory.

Aluminum profiles not only dissipate heat, but also protect the LED strips from dust, insects, and partially from moisture.

CORRECT POWER SUPPLY

LED strips must be powered with a constant voltage power supply, usually with a DC symbol.

A DC 24V power supply is required for 24V LED strips.

Please note that 24V LED strips, powered at one end can reach a maximum length of 5m. To reach longer lengths, it is mandatory to power the strip at both ends or in 5mt sections.

Always use a power supply with power higher than the power of the led strip.

DIMMERATION

To regulate the light intensity of a led strip you need the use of a suitable controller.

You can dim led strips with a WiFi controller, from Button, use Alexa voice control, manage remotely via Smartphone, and even set a timer.
