Led strip H.E. 90W 13000lm 24V IP20 PCB 10mm 800 SMD 2835 coil

Led strip H.E. 90W 13000lm 24V IP20 PCB 10mm 800 SMD 2835 coil

DESCRIPTION

Led strip 2835 of 5 meters, mounted on 3M double-sided tape.
160Led / mt, (800 total Led) this Led strip is dimmable and cuttable to every 8 Led (50mm).
The connection of several Led strips must be carried out in parallel.
For installation it is necessary to use aluminum profiles for dissipation.

High Luminous Efficiency from 150lm / W
Supply voltage DC 24V (Power supply not included)
Nominal Power 90W per Coil / Power Consumption 18 W / mt
Nominal Lumen 13000 Lm per Coil / Effective Lumen 2600 Lm / mt

DATA SHEET:

Led number: 800 (160 / mt)
Rated power: 90W (18W / mt)
Power supply voltage: DC24V
Dimmable: Yes
Led type: SMD2835 H.E.
Nominal Luminous Flux: 13000Lm (2600Lm / mt)
Efficiency: 150Lm / W

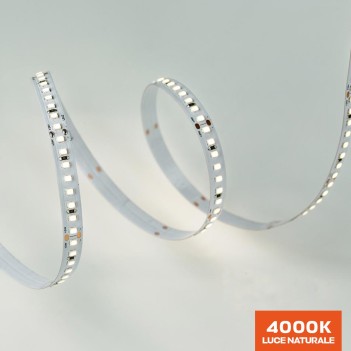

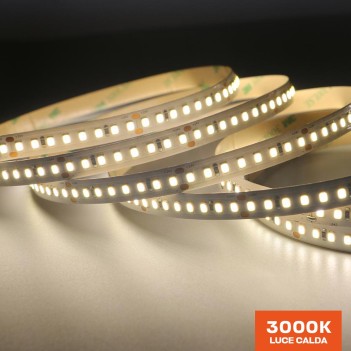

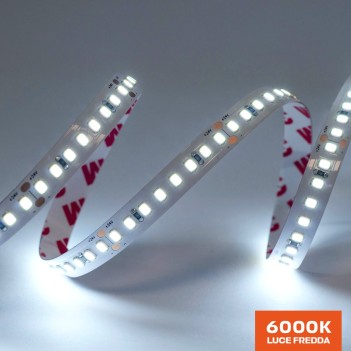

Color Temperature: 3000K / 4000K / 6000K
Light angle: 120 °
Color rendering index: 80+
Strip length: 5000mm
Width: 10mm

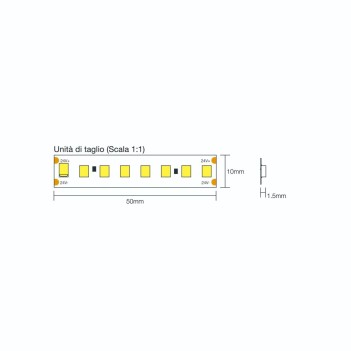

Cutting Segment: 8LED / 50mm
Height: 2mm
PCB color: White
Protection: IP20
Certificates: TUV, UL, RoHS
Warranty: 3 Years
Code: 4552 - 4550 - 4551

CORRECT INSTALLATION

To ensure maximum performance in terms of light output and duration, installation on a special aluminum profile is mandatory, designed for correct heat dissipation.

The aluminum profiles not only dissipate heat, but also protect the LED strips from dust, insects and partially moisture.

PROPER NUTRITION

The LED strips must be powered with a constant voltage power supply, usually with the DC symbol.

A DC 24V power supply is required for the 24V led strips.

Remember that the 24V led strips, powered at one end, can reach a maximum length of 5m. To reach higher lengths it is mandatory to feed the strip to both ends or in 5m sections.

Always use a power supply with a power greater than the power of the led strip.

DIMMERATION

To adjust the light intensity of a LED strip it is necessary to use a suitable controller.

You can dim the led strips with a WiFi controller, from Button, use Alexa's voice control, remotely manage via Smartphone and also set a timer.
