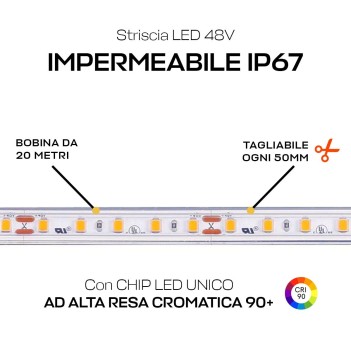

H.C. Series Led Strip CRI90 300W 33000lm 48V IP67 PCB 10mm Reel of 2000 SMD 2835 - 20 Metres

IP67 Waterproof 10mm LED Strip 300W 48V, 20-meter Coil, High Color Rendering with 33,000lm (1650 lm/m), Suitable for Outdoor and Highly Humid Environments such as Inside the Shower Box

This Ultra-Slim High Color Rendering LED Strip is an advanced lighting solution designed to deliver excellent performance in terms of brightness, energy efficiency, and faithful color reproduction. The ultra-slim LED strip comes with cutting-edge technical features, providing high-quality illumination suitable for a variety of settings.

Featuring a total of 2,000 LEDs (100 LEDs per meter), the entire coil consumes 300W of power evenly distributed at 15W per meter. Operating at 48V, this LED strip is dimmable, allowing flexible control of light intensity to adapt to specific environmental needs. The 48V voltage enables the installation of a 10m LED strip powered from one side only. However, for a 20m installation, power must be supplied from both sides to prevent voltage drops. For 24V LED strips, powering from both sides is necessary even for a 10m length.

Thanks to the efficient and durable SMD 2835 LEDs, the strip produces a nominal luminous flux of 33,000 lumens in total, 1650 lm per meter, with an impressive efficiency of 110 lumens per watt. This ensures intense illumination with optimized energy consumption.

Choose the light temperature before purchase between natural (4000K) and warm (3000K). With a wide light angle of 120°, the strip ensures uniform light distribution, effectively illuminating the surrounding environment.

A color rendering index exceeding 90+ ensures faithful color reproduction, making this LED strip particularly suitable for situations where color rendering is essential.

The slim dimensions of the strip (20,000mm x 10mm x 5mm) offer flexibility for installation in various applications. The 5-LED cutting segment every 50mm allows precise customization according to project needs.

The white PCB color gives a clean and modern look to the strip, while the IP67 protection makes it suitable for installations in humid or outdoor environments.

Certified by TUV and RoHS, this LED strip complies with rigorous quality and safety standards. With a generous 5-year warranty, you can rely on this Ultra-Slim High Color Rendering LED Strip for reliable and durable lighting.

Technical Specifications:

Number of LEDs: 2,000 (100/m)

Nominal Power: 300W (15 W/m)

Supply Voltage: DC 48V

Dimmable: Yes

LED Type: SMD 2835

Nominal Luminous Flux: 33,000 Lm (1650 Lm/m)

Efficiency: 110 Lm/W

Color Temperature: 4000K / 3000K (to be chosen before purchase)

Light Angle: 120°

Color Rendering Index: 90+

Strip Length: 20,000 mm

Width: 10 mm

Cutting Segment: 5 LED / 50 mm

Height: 5mm

PCB Color: White

Protection: IP67

Certifications: TUV, RoHS

Warranty: 5 Years

PROPER POWER SUPPLY for 48V LED Strip:

LED strips must be powered with a constant voltage power supply, typically labeled with the DC symbol. For 48V LED strips, a DC 48V power supply is required (» see compatible 48V power supplies). Note that 48V LED strips powered from one end can reach a maximum length of 5m. To achieve longer lengths, it is mandatory to power the strip from both ends or in sections of 5m. Always use a power supply with higher wattage than the LED strip's power.

CORRECT INSTALLATION of an LED Strip:

To ensure maximum performance in terms of brightness and durability, it is mandatory to install the LED strip on a dedicated aluminum profile designed for proper heat dissipation. Aluminum profiles not only dissipate heat but also protect the LED strips from dust, insects, and partial humidity. Disconnect the power supply before proceeding with the installation. Connect the LED strip to the output of the compatible power supply, respecting the cable polarity. Connect the red cable of the LED strip to the positive terminal/cable of the power supply and the black one to the negative pole. The input of the power supply must be connected to the 220V electrical network, paying close attention to correctly connect the neutral and phase wires of your system to the power supply.

DIMMING:

To adjust the light intensity of an LED strip, you need to use a suitable controller. You can dim the LED strips with a WiFi controller, Button controller, or via voice control using Alexa or a smartphone. Purchase a monochrome LED strip receiver at 48V (click here) to control your lighting.
