H.C. Series Led Strip CRI90 110W 12,000lm 48V IP20 PCB 10mm 750 smd coil 2835

DESCRIPTION

• 20m Strip with 4800 Samsung S2 LEDs, model with closely spaced LED chips
• Supply Voltage DC 24V (Power supply not included)
• Dimmable and Cuttable LED Strip, every 6 LEDs (25mm)
• Nominal Power 520W per Roll / Consumption Power 23.2W/m
• Nominal Lumen 58,000lm per Roll / Actual Lumen 2500lm/m
• 20-meter Roll
• Professional Use
• Power feed every 10m maximum, for longer lengths, power at multiple points.

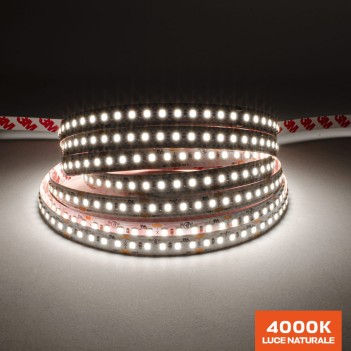

20-meter 2835 LED Strip, mounted on 3M adhesive.

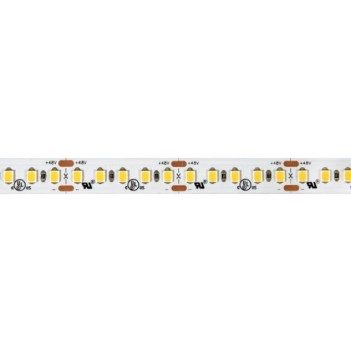

240 LEDs/m, (4800 total LEDs) this LED strip is cuttable every 6 LEDs (25mm).

This model of LED strip is characterized by having Samsung S2 model 2835 LEDs.
Thanks to this feature, it is excellent for installation in shops, boutiques, and places where a lot of light is needed. Also, due to the density of the LEDs, the light is uniform and continuous.

Connecting multiple LED strips must be done in parallel.
For installation, the use of aluminum profiles for heat dissipation is necessary.

TECHNICAL SPECIFICATIONS

PCB Width 10mm
PCB+SMD Height 2mm
Roll Length 20m
Supply Voltage DC 24V
Nominal Power 520W
Consumption Power 23.2W/m
Nominal Lumen 58,000lm
Actual Lumen 2500lm/m
Kelvin 2700K / 4000K / 6500K
Color Rendering Index (CRI) 85+
LED Type 2835 x 4800pcs
Cuttable Every 6 LEDs / 25mm
IP20 Waterproof
Dimmable YES
Operating Temperature -20° to +40° Degrees
Certifications CE / RoSH / TUV / UL on request
3 Years Warranty

CORRECT INSTALLATION

To ensure the maximum performance in terms of brightness and durability, installation on a dedicated aluminum profile, designed for proper heat dissipation, is mandatory.

The aluminum profiles not only dissipate heat but also protect the LED strips from dust, insects, and partially from humidity.

CORRECT POWER SUPPLY

LED strips must be powered by a constant voltage power supply, usually marked with DC.

For 48V LED strips, a DC 48V power supply is required.

Remember that 48V LED strips powered from one end can reach a maximum length of 5m. To achieve longer lengths, it is mandatory to power the strip from both ends or in sections of 5m.

Always use a power supply with higher wattage than the LED strip's power.

DIMMING

To adjust the brightness of an LED strip, it is necessary to use a suitable controller.

You can dim LED strips with a WiFi controller, a button controller, or through voice control with Alexa or via Smartphone.
