H.E. series LED strip 130W 18000lm 24V IP20 PCB 10mm coil of 800 SMD 2835

DESCRIPTION

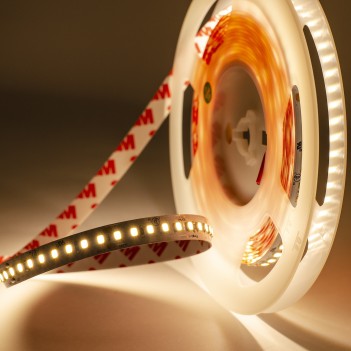

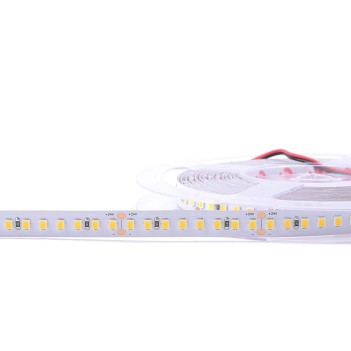

5-meter long 2835 LED strip, mounted on 3M adhesive.

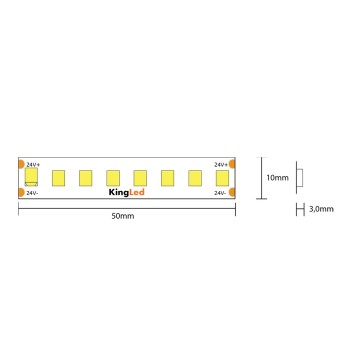

160 LEDs/m, (800 LEDs in total). This LED strip can be cut every 8 LEDs (50mm).
This model is one of the most powerful ever designed, easily replaceable for traditional LED tubes.
Ideal for illuminating shop windows or stores.

Multiple LED strips must be connected in parallel.
For installation, the use of aluminum profiles for heat dissipation is necessary.

TECHNICAL SHEET

PCB Width: 10mm
PCB+SMD Height: 1.5mm
Coil Length: 5000mm
Power Supply: DC 24V
Nominal Power: 130W/Coil

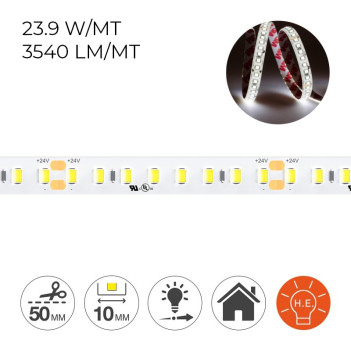

Effective Power: 23.9W/m
Nominal Lumen: 18,000lm/Coil
Effective Lumen: 3540lm/m

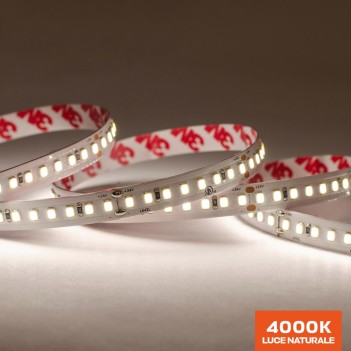

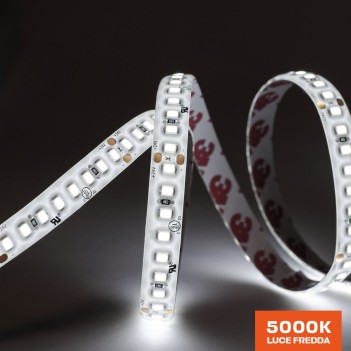

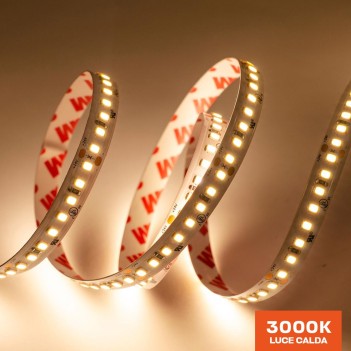

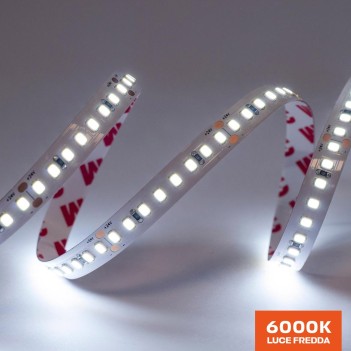

Kelvin: 3000K / 4000K / 6000K
Color Rendering Index (CRI): 80+
LED Type: 2835 x 800pcs
Cuttable Every 8 LEDs / 50mm
IP20 Waterproof
Dimmable: Yes
Operating Temperature: -20°C to +40°C
Certifications: CE / RoSH / TUV / UL on request
Warranty: 3 Years

HOW TO INSTALL A 24V LED STRIP

To ensure maximum performance in terms of brightness and durability, it is mandatory to install it on a dedicated aluminum profile designed for proper heat dissipation.

Aluminum profiles not only dissipate heat but also protect LED strips from dust, insects, and partially from humidity.

CHOOSING THE RIGHT POWER SUPPLY FOR THE LED STRIP:

LED strips must be powered by a constant voltage power supply, usually marked with the DC symbol. For 24V LED strips, a 24V DC power supply is required.

To calculate the required wattage of the power supply for your LED strip, a simple mathematical multiplication is sufficient:

"Number of meters of LED strip x Watts per meter absorbed by the strip model = Power required for the power supply."

Attention: Always purchase a slightly more powerful power supply than the result obtained, otherwise your power supply would always work at full load, risking burning it.

"Example: You have a 3-meter LED strip with 20W per meter, and you want to buy a power supply. The operation to be done will be this: 20W x 3m = 60W total absorption for 3 meters of LED strip. You will need a power supply of at least 100W."

It is remembered that 24V LED strips, powered from one end, can reach a maximum length of 5m. To reach longer lengths, it is mandatory to power the strip from both ends or in sections of 5m.

Always use a power supply with power greater than the LED strip.

HOW TO DIM A LED STRIP:

To adjust the brightness of an LED strip, the use of a suitable controller is necessary.

You can dim LED strips with a WiFi controller, push-button, use Alexa's voice control, remotely manage via Smartphone, and even set a timer.

LED STRIP CONNECTION DIAGRAM:

1). LED strip connection with power supply without dimmer/controller:





2). LED strip connection with power supply and dimmer/controller:
