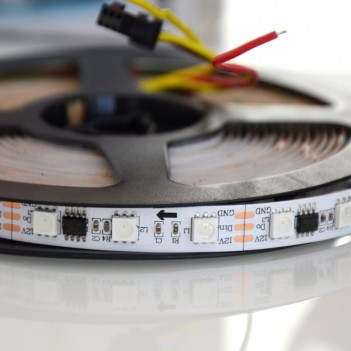

WS2811 Digital Led Strip RGB 60W 12V IP20 PCB 12mm 300 SMD 100 PIXEL

This 60W 12V digital RGB led strip is perfect for creating dynamic, multicolored and advanced lighting effects, impossible to create with classic RGB strips.

On the PCB of this digital RGB LED Strisica model there is installed a circuit every 3 LEDs (1: 3) which forms a group of LEDs. What does this mean? That you will be able to manage and control the individual groups (PIXEL) independently. This will allow you to create beautiful and exciting color games.

Like the classic led strips, this digital led strip can also be cut. In this case it is divisible every 50 mm that is every 3 LEDs which form a group.

To manage and control this model of led strip you need a led controller suitable for digital led strips (not included).

To power it, just install a normal 12V power supply with a minimum power of 60W (absorption of the entire coil).

The connection of several Led strips must be carried out in parallel.
For installation it is necessary to use aluminum profiles for dissipation.

Rated power: 60W / reel
Watt per meter: 12W / mt
Power supply voltage: DC 12V
Electrical Insulation Class: III
Driver: Constant Voltage
Led type: SMD5050
Nominal Luminous Flux: 340Lm / mt
Lamp Efficiency: 28.33Lm / w
Color Temperature: RGB
Light angle: 120 °
Color rendering index: -
Energy rating: -
Strip length: 5 meters
Cutting Segment: 3LED / 50mm
Dimensions: 5000x10x2mm
Material: PCB
IP protection: IP20
Internal use
Certificates: TUV, CE, RoHS
Warranty: 3 Years

HOW TO INSTALL A 24V LED STRIP

To ensure maximum performance in terms of light output and duration, installation on a special aluminum profile is mandatory, designed for correct heat dissipation.

The aluminum profiles not only dissipate heat, but also protect the LED strips from dust, insects and partially moisture.

WHICH POWER SUPPLY TO BUY FOR THE LED STRIP:

The LED strips must be powered with a constant voltage power supply, usually with the DC symbol. For 12V led strips you need a DC 12V power supply.

To calculate the required wattage of the power supply to buy for your led strip, just do a simple mathematical multiplication:

"N ° meters of led strip x Watt per meter absorbed by the strip model = Essential power of the power supply"

Warning: Always buy a slightly more powerful power supply for the result obtained, otherwise your power supply would always work at full load and you would risk burning it.

"Ex: You have 3 meters of 20W LED strip per meter and you want to buy a power supply, the operation to be done will be this: 20 W x 3mt = 60W total absorption for 3 meters of LED strip. You will therefore need a power supply unit of at least 100W "

Remember that the 12V led strips, powered at one end, can reach a maximum length of 5m. To reach higher lengths it is mandatory to feed the strip to both ends or in 5m sections.

Always use a power supply with a power greater than the power of the led strip.
