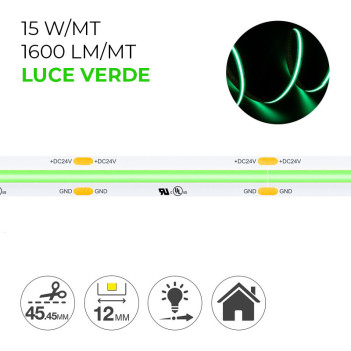

COB LED Strip Green Light 75W 24V IP20 PCB 10mm Chip Led Continued

DESCRIPTION

• Led Strip with 1 single COB Led
• No light dots effect
• DC 24V (Power supply not included)
• Dimmable Led Strip, Cutting length each 45.45mm
• Rated Power 75W/reel – Power consumption 15W/mt
• Green Light

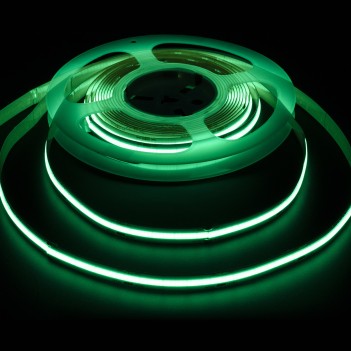

5mt COB Led strip, mounted on Tesa double-sided tape.

Single led, cutting length each 45.45 mm.

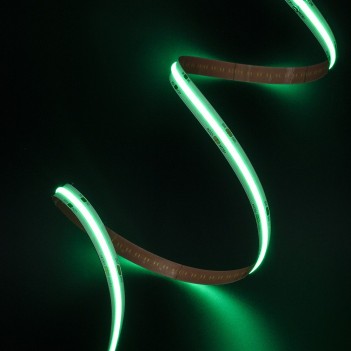

No light dot effect, this led strip eliminates the effect. The light is uniform, compact and bright.

Different Led strips have to be connected in parallel.

Led strips must be installed in aluminium profiles for heat dissipation.

DATASHEET
PCB Width 10mm
PCB+SMD Height 1,6mm
Reel length 5mt
Powe Supply DC 24V
Rated Power 75W
Power 15W /mt
Lumen 1600 lm /mt (Approximate value, coloured light doesn’t have a lumen value)
Kelvin GREEN
Led Type COB
Cutting Length 45.45 mm
IP Rating IP20
Dimmable: SI
Working temperature -20° a +40° Gradi
Certifications CE / RoSH
Warranty 3 Years

CORRECT INSTALLATION

In order to have the best performances in terms of lighting and lifespan it is mandatory to install the led strip in a suitable aluminium profile, made to correctly dissipate the heat from the strip.

Aluminium profiles not only dissipate the heat, but they also protect the Led strips from dust, insects and partially from humidity.

CORRECT POWER SUPPLY

Led strips must be powered with a constant tension power supply, usually with a DC symbol.

For 24V Led strips it is necessary to use a 24V power supply.

Please note that 24V led strips powered from one end can reach 5mt maximum length. To reach greater lengths it is mandatory to power the strip from both ends or in 5mt sections.

Always use a power supply with more power than the led strip power.

DIMMING

In order to adjust the led strip brightness you will need a suitable controller.

You can dim the led strips with a WIFI controller, from a push button, with Alexa vocal control, with your smartphone and also set a timer.
