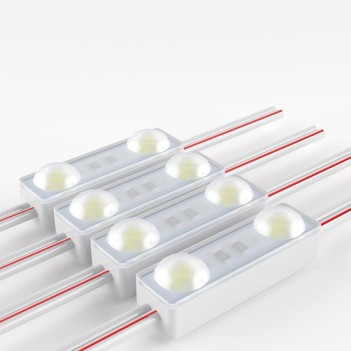

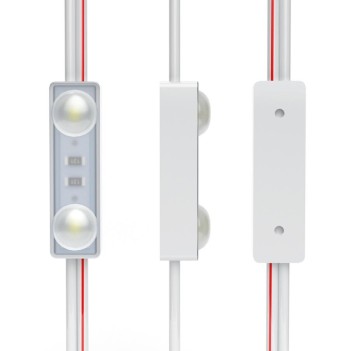

0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting
  • 0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting
  • 0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting
  • 0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting
  • 0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting
  • 0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting
Ideas of Use:
Backlighting
Input:
DC 12V
Kelvin :
3000K
Kelvin :
4000K
Kelvin :
6000K
Watts:
0.4 W / Module
Lumen - Brightness:
40 Lumen / Module
Quantity Led:
2 Led / Module
IP rating:
IP67
Cutting Length:
N.D.
Width:
8 mm
Length:
28 mm
CRI:
85+
Light Angle:
160°
Dimmable:
Yes
Series:
Led Module

0.4W 12V LED signage module with 2 SMD2835 160D IP67 LEDs for backlighting

2SMD2835-6837

€0.70
,
5/ 5
22% Tax included Delivery in 24/48H (Europe 3-5 days)
3 Giorni | 0 Ore | 0 Minuti | 0 Secondi
In stock - Shipping in 24/48H
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì

Waterproof LED backlight module:

- IP67 waterproof

- Cold and natural light available

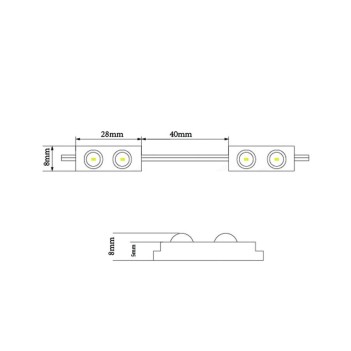

- Distance between modules 40mm

- Power 0.4W brightness 40lm

Color Temperature (Kelvin)
Quantity
-
+
Totale: €
22% Tax included

The minimum purchase order quantity for the product is 25.

Sei un Professionista?
Ottieni prezzi più vantaggiosi
Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Spedizione entro 24/48h
Oltre 40000 recensioni
Chiamaci +39 0392271928
Richiedi Assistenza
Contattaci tramite Whatsapp
Lun - Gio 9h - 18:30h | Ven 9h - 18h

LED modules for backlighting 0.4W 12V voltage from 2 SMD2835 leds for signs, totems and more. These battery-operated LED modules are IP67 waterproof and have a luminous angle of 160 degrees. The distance between the modules is 40mm.

Equipped with blinds on the back

TECHNICAL FEATURES

Light Beam: 160º

Lifetime: 30,000 hours

Certificates: CE & RoHS

Energy Class: A+

Dimensions: 28x8x8 mm

IP Protection: IP67

Light Source: SMD2835

Light Colour: 4000K

Body Material: ABS

Power: 0.4W

Number of LEDs: 2

Supply Voltage: 12V DC

Luminous Flux: 40 lm

Colour Rendering Index: 85

Warranty: 3 Years

Distance Between 2 Modules: 40mm

Operating Temperature: -20C~+60C

Cables: UL 22AWG 300V/80C

6837
3875 Items

Data sheet

Ideas of Use
Backlighting
Input
DC 12V
Kelvin
3000K
4000K
6000K
Watts
0.4 W / Module
Lumen - Brightness
40 Lumen / Module
Quantity Led
2 Led / Module
IP rating
IP67
Cutting Length
N.D.
Width
8 mm
Length
28 mm
CRI
85+
Light Angle
160°
Dimmable
Yes
Series
Led Module
