Led Strip COB CRI90 50W 5250lm 24V IP20 PCB 8mm Chip Led Continuous with solderless pcb - 20 Metres

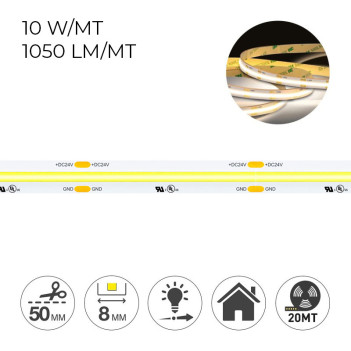

20-metre coil of 50W 24V LED Strip, continuous LED chip without dot effect, with unique solderless PCB that allows the strip to be much more durable. The entire reel has a power consumption of 50W, with a consumption per metre of only 10W.

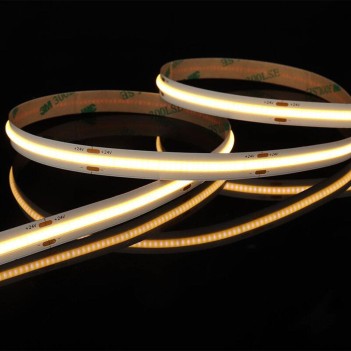

LED strip composed of 2400 mini LEDs combined to form a single continuous COB LED

Absolute zero spotlight effect.

High Colour Rendering CRI 90+

Power Supply Voltage DC 24V (Power Supply not included)

Led Strip Dimmable and Cut every 50 mm

Nominal Power 50W per Coil / Power Consumption 10W /mt

Nominal Lumen 5250 lumen per Coil / Effective Lumen 1050lm /mt

5-metre COB LED strip with double-sided adhesive tape on the back and connection cables already soldered at the beginning and end of the coil.

No more spotlight effect, this LED strip definitively eliminates any spotlight effect. The light is homogeneous, compact and bright.

Several LED strips must be connected in parallel.  Aluminium profiles for dissipation are required for installation.

TECHNICAL DATA SHEET

Part no. 6750/6751

PCB width 8 mm

PCB+SMD height 1.6mm

Coil length 5mt

Power supply DC 24V

Nominal Power 50W

Effective Power 10W/mt

Nominal Lumen 5250 Lumen

Effective Lumen 1050 lm /mt

Kelvin: 3000K/4000K

Colour rendering index (CRI) 90+

Type COB Led

Light Angle: 160

Cuttable to Any 50 mm

Waterproof IP20

Dimmable: YES

Certifications CE / RoSH

2 Year Warranty

CORRECT INSTALLATION

To ensure maximum performance in terms of light output and lifetime, installation on a special aluminium profile, designed for proper heat dissipation, is mandatory.

Aluminium profiles not only dissipate heat, but also protect the LED strips from dust, insects and partially from moisture.

CORRECT POWER SUPPLY

LED strips must be supplied with a constant voltage power supply unit, normally with a DC symbol.

For 24V LED strips a DC 24V power supply unit is required.

Please note that 24V LED strips, powered at one end can reach a maximum length of 5m. To reach longer lengths it is mandatory to power the strip at both ends or in 5m sections.

Always use a power supply with power higher than the power of the led strip.

DIMMERATION

In order to adjust the luminous intensity of a led strip it is necessary to use a suitable controller.

You can dim LED strips with a WiFi controller, by push-button, use Alexa voice control, manage remotely via Smartphone and even set a timer.
