MeanWell 320W 12/24V IP67 XLG-320-V-A power supply with voltage regulator

The Meanwell XLG-320-V-A power supply is a top AC/DC driver for LED lighting from the renowned brand MEANWELL, a world leader in power supplies. This power supply offers excellent performance and safety like few others. With an IP67 waterproof rating, it is water resistant and can be used in wet environments.

This waterproof power supply offers the option of having two output voltages, which can be set via a voltage regulator on the back, and you can choose between DC 12V and DC 24V (By default it comes out set to DC 24V)

The XLG-320-V-A power supply is not dimmable. To be able to a led strip with this power supply, you will need to purchase a led strip controller/receiver. It is designed specifically for LED lighting applications. Its metal housing lends strength and durability, protecting sensitive interiors from damage.

With an output of 312 watts, the power supply offers an amperage of 13A at 24Vdc or 18A at 12Vdc, providing a stable and efficient power source for LED devices. It is wired, which simplifies installation and use.

The XLG-320-V-A power supply offers an output voltage of 12/24VDC, allowing it to power compatible LED devices. The input voltage can range from AC 100 to 305V, ensuring compatibility with various power grids.

With a wide working temperature range of -40°C to +85°C, this power supply can operate in extreme environments without compromising performance. Its compact dimensions of L246xW77xH39.5mm allow for easy integration into various installation spaces. Weighing 1.45 kg, it is lightweight and easy to handle.

In terms of safety, the XLG-320-V-A power supply is equipped with short-circuit, overtemperature and overload protection. These safety features ensure reliable operation and protect both the power supply and connected devices.

In conclusion, the Meanwell XLG-320-V-A power supply is an excellent choice for powering LED devices. It offers reliable performance, comprehensive protection, and versatile compatibility, all in a rugged and compact design.

Strongly recommended for industrial uses as well.

DATASHEET:

Driver Type: AC/DC LED DRIVER

Brand: MEANWELL

Waterproofness: IP67

Dimmable: NO

Type of use: led lighting

Housing: Metal

Power: 312 watts

Amps: 13A in 24Vdc or 18A in 12Vdc

Wired: Yes

Output voltage: 12/24VDC

Input Voltage: AC 100-305

Working temperature : -40° up to + 85°

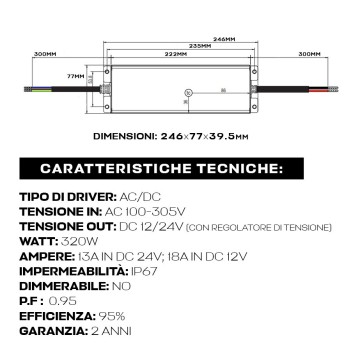

Dimensions: L246xW77xH39.5mm

Weight: 1.45kg

Safety: Short circuit, overtemperature and overload protection
