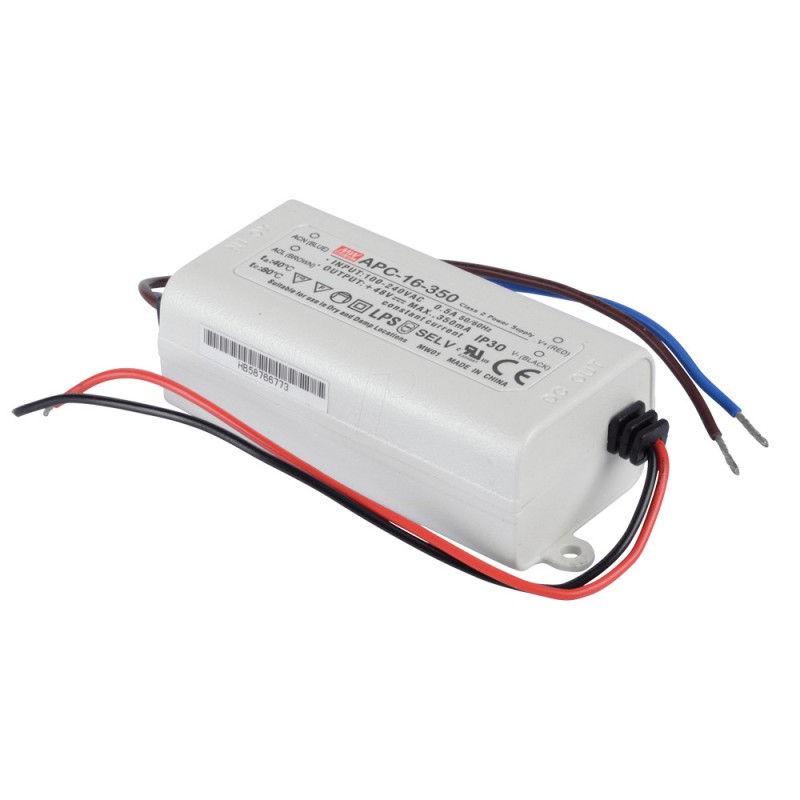

Meanwell Led Power Supply APC-16-350 16W Constant Current 350MA 12-48V en
  • Meanwell Led Power Supply APC-16-350 16W Constant Current 350MA 12-48V en
  • Meanwell Led Power Supply APC-16-350 16W Constant Current 350MA 12-48V en
Type of device:
Driver
Input:
AC 90-264V
Output:
Constant current
IP rating:
IP42
Dimmable:
No
Watt:
16 W
N. Channels:
1 Channel
Ampere:
0,350 A
design:
Plastic Structure
design:
Narrow and long
Connector type:
With stripped cable
Smart:
No

Meanwell Led Power Supply APC-16-350 16W Constant Current 350MA 12-48V

1783

€10.75
€8.06 Save 25%
,
5/ 5
22% Tax included Delivery in 24/48H (Europe 3-5 days)
3 Giorni | 0 Ore | 0 Minuti | 0 Secondi
In stock - Shipping in 24/48H
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì
Quantity
-
+
Totale: €
22% Tax included

Sei un Professionista?
Ottieni prezzi più vantaggiosi
Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Spedizione entro 24/48h
Oltre 40000 recensioni
Chiamaci +39 0392271928
Richiedi Assistenza
Contattaci tramite Whatsapp
Lun - Gio 9h - 18:30h | Ven 9h - 18h

Mean Well 16W Constant Current LED Driver Power Supply - APC Series and 16

These highly reliable LED power supplies/drivers feature a fully isolated plastic enclosure, ideal for LED lighting and mobile signage applications.

Universal AC input full range
Small, compact, and fully isolated plastic casing
Natural convection cooling
100% full load burn-in test
Protection against short circuit, overload, and overvoltage
Passes LPS
Compliance with EMC EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic distortion complies with EN61000-3-2 Class A, EN61000-3-3

Note

Exclusively for industrial use, not covered by directive (CE) No. 125/2009
From MTBF to MIL-HDBK-217F
Output power reduction above 45°C operating temperature - codes 738-1561 and 738-1570

Standards: Designed in compliance with TUV EN60950-1, EN61347-2-13, UL8750

Technical Specifications:

  • Protection Rating: Indoor
  • Height: 29mm
  • Width: 40mm
  • Length: 77mm
  • Quantity per Package: 120pcs
  • Power: 16W
  • Output: 12-48V
  • Constant Current: YES
  • ROHS: YES
  • Input Range: 90-264Vac
  • Power Supply Type: AC/DC
  • Number of Outputs: 1
1783
4 Items

Data sheet

Type of device
Driver
Input
AC 90-264V
Output
Constant current
IP rating
IP42
Dimmable
No
Watt
16 W
N. Channels
1 Channel
Ampere
0,350 A
design
Narrow and long
Plastic Structure
Connector type
With stripped cable
Smart
No
