Meanwell 150W Power Supply For Led Stripes 24V Transformer LRS-150-24

KingLed specialized retailer in LED lighting

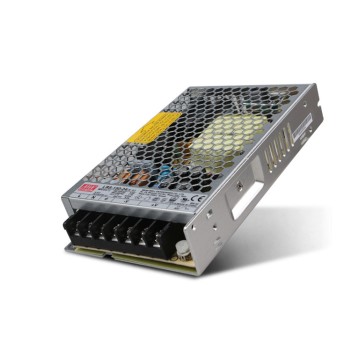

AC/DC Power Supply Mean Well LRS-150-24 150W DC 24V

The MeanWell LRS series power supplies are part of a line of high-performance professional power supplies, featuring a perforated aluminum structure for air dissipation.
They are suitable for continuous use and are also suitable for industrial use.
This power supply is equipped with protection against overload, overvoltage, and short circuit.

The power supply comes with a voltage regulator (Vadj) allowing an output voltage from 21.6V to 28.8V.
It is compatible with all LED strips and devices requiring a constant DC 24V voltage

DOWNLOAD DATASHEET: LRS-150

FEATURES:

- Maximum Power: 156W
- Maximum Current: 6.5A
- Driver Type: AC/DC
- Input Voltage: AC 85-264V
- Output Voltage: DC 24V
- Dimmable: no
- Number of Outputs: 2 outputs
- Structure: aluminum
- Protection Rating: non-waterproof IP20
- Operating Temperature: -30°C to +70°C
- Efficiency: 89%
- Dimensions: 159 x 97 x 30 mm
- Warranty: 3 years
- Certifications: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943 approved, Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2 Class A(≤75% Load), EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
