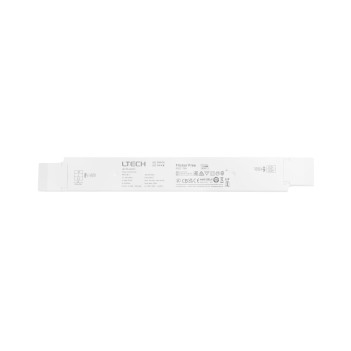

Power Supply 150W 24V Dimmable PUSH, TRIAC - LTech LM-150-24-G1T2

DRIVER 150W 24V DIMMABLE TRIAC / PUSH

- Compatible with Leading edge (Triac), Trailing edge (ELV), and Push Dimmers.

- Features soft-on and soft-off functions for more comfortable switching.

- Dimming range from 0-100%, starting from 0.1%.

- Flicker-free operation from 0-100% without flickering.

- Protection against short circuit, overheating, overload, and overvoltage, with automatic recovery. Compliant with Safety Extra Low Voltage Standard.

- Suitable for indoor lighting applications for TYPE I / II / III.

Technical Specifications:

Input Voltage: 200-240V

Frequency: 50/60Hz

Input Current: 230Vac=1.4A

Efficiency: 85%

Inrush Current: Cold start 50A at 230Vac

Power Factor: PF>0.5/230Vac, at full load

Anti-Surge: L-N:1KV, L/N-G: 2KV

Output Voltage: 24V

Output Current: Max. 6.25A

Output Power: Max. 150W

Output Power Range: 0~150W

Dimming Interface: TRIAC / ELV / Push

Strobe Level: High-frequency, exemption level

Dimming Range: 0~100%, Dimming Depth: 0.1%

Overload Limiter: =102%

Ripple: = =200mV

PWM Frequency: =3600Hz

Operating Temperature: ta:-20°C~45°C, tc:90°C

Operating Ambient Humidity: 20 ~ 95% RH, non-condensing

Safety Standards: IEC/EN61347-1, IEC/EN61347-2-13

Dimensions: 273 x 57 x 30mm

Weight: 710g±10g

Download DATASHEET: LTech LM-150-24-G1T2
