Actec Power Supply 100W 24V DIM24-100 - Dimmable Phase Cut DIM24-100 en
  • Actec Power Supply 100W 24V DIM24-100 - Dimmable Phase Cut DIM24-100 en
  • Actec Power Supply 100W 24V DIM24-100 - Dimmable Phase Cut DIM24-100 en
  • Actec Power Supply 100W 24V DIM24-100 - Dimmable Phase Cut DIM24-100 en
Type of device:
Driver
Input:
AC 220-240V
Output:
DC 24V
IP rating:
IP20
Dimmable:
Yes
Dimmable:
Yes - Triac
Watt:
100 W
N. Channels:
1 Channel
Ampere:
4,2 A
design:
Plastic Structure
Connector type:
With clamps
Smart:
No

Actec Power Supply 100W 24V DIM24-100 - Dimmable Phase Cut DIM24-100

3854

€71.00
,
5/ 5
22% Tax included Delivery in 24/48H (Europe 3-5 days)
3 Giorni | 0 Ore | 0 Minuti | 0 Secondi
In stock - Shipping in 24/48H
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì

DATASHEET: DIM-100W 24V

Quantity
-
+
Totale: €
22% Tax included

Sei un Professionista?
Ottieni prezzi più vantaggiosi
Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Spedizione entro 24/48h
Oltre 40000 recensioni
Chiamaci +39 0392271928
Richiedi Assistenza
Contattaci tramite Whatsapp
Lun - Gio 9h - 18:30h | Ven 9h - 18h

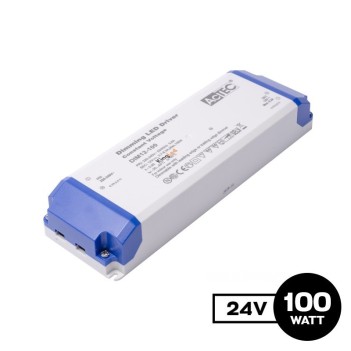

Dimmable AC/DC Power Supply ACTEC DIM24-100

Reliability and ease of installation are the qualities of this product and the philosophy of the AcTEC brand.

The DIM line is a line of Dimmable power supplies, via TRIAC (phase cut) from 1 to 100%.

They can be directly installed on furniture such as under cabinets or wardrobes.

They are suitable for continuous use and are compatible with all low voltage constant voltage devices such as LED strips, cameras, controllers, etc.

This power supply has protection from: Short circuit, Overload, Overtemperature.



FEATURES:

-Maximum Power: 100W
- Maximum Current: 1.4A - 4.2A
- Driver Type: AC/DC
- Input Voltage: AC 220-240V
- Output Voltage: DC 24V
- Dimmable: TRIAC
- Number of Outputs: 1 output
- Structure: Plastic
- Protection Rating: non-waterproof IP20
- Operating Temperature: -20°C to +45°C
- Full Load Efficiency: 91%
- Protection Class: II
- Isolation: SELV
- Dimensions: 210 x 67 x 34 mm
- Warranty: 3 years

DATASHEET: DIM-100W 24V

3854
24 Items

Data sheet

Type of device
Driver
Input
AC 220-240V
Output
DC 24V
IP rating
IP20
Dimmable
Yes
Yes - Triac
Watt
100 W
N. Channels
1 Channel
Ampere
4,2 A
design
Plastic Structure
Connector type
With clamps
Smart
No

Specific References

EAN13
8059174099626
