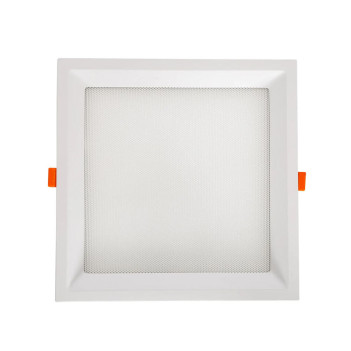

Superslim Recessed Led Panel 225x225mm 20W 2400lm Dual White CCT IP40 and UGR17

This 20W recessed super slim LED panel represents a sophisticated and efficient solution for the interior lighting of your home or office. With a power of 20W, this panel provides a reliable and high-quality light source. Its advanced features make it ideal for various applications.

The power factor of 0.90 and the supply voltage of 220-240V AC ensure optimal energy efficiency, contributing to cost reduction and energy consumption. With an operating frequency of 50-60 Hz and electrical insulation class II, this LED panel ensures stable and secure performance.

The SMD2835 light source with 200 LEDs offers a luminous flux of 2400 lm, ensuring uniform and high-quality lighting. The selectable light temperature allows adapting the lighting to the specific needs of the environment. Its energy efficiency, rated as class D according to EU-2019/2015 regulations, reflects a commitment to sustainable solutions.

With a wide beam angle of 120º and a UGR17 anti-glare translucent lens, this LED panel can illuminate large areas uniformly. The IP40 protection makes it suitable for indoor use, ensuring durability and high performance. Additionally, the IK05 protection provides extra robustness to the body made of PC and aluminum.

The recessed installation, with total dimensions of 25x225x225 mm and cutout dimensions of 200x200 mm, makes it discreet and suitable for various configurations. With a height of only 25 mm, this super slim LED panel adapts perfectly to spaces with height limitations.

Equipped with a reliable LIFUD driver, this panel offers a lifespan of 40,000 hours and a 3-year warranty. Certified CE & RoHS and UKCA, this super slim LED panel combines advanced performance and compliance with European safety standards.

Power: 20 W

Power Factor: 0.90

Supply Voltage: 220-240V AC

Operating Frequency: 50-60 Hz

Electrical Insulation Class: II

Light Source: SMD2835

Number of LEDs: 200

Light Color: CCT

Color Temperature: Selectable

Luminous Flux: 2400 lm

Energy Efficiency 2023 (EU-2019/2015): D

Beam Angle: 120º

Lens Type: Translucent

Use: Indoor

IP Protection: IP40

IK Protection: IK05

Body Material: PC, Aluminum

Installation: Recessed

Dimensions: 25x225x225 mm

Cutout Dimensions: 200x200 mm

Height: 25 mm

Width: 225 mm

Length: 225 mm

Weight: 0.480 Kg

Driver: LIFUD

Lifespan: 40,000 Hours

Warranty: 3 Years

Certifications: CE & RoHS, UKCA
